How to create an inbound activity

How to create an inbound activity

1.    Introduction
The purpose of this document is to explain the configuration of an inbound activity into NCS.

2.    Prerequisites

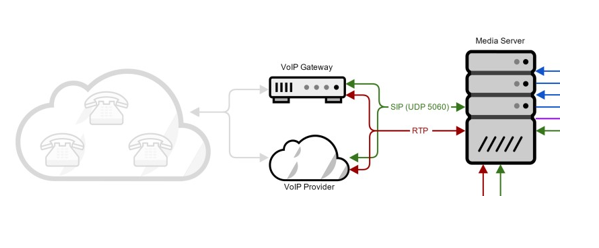

Calls are coming to the Nixxis Media Server through a SIP trunk:
- direct link to a VOIP provider,
- through a VOIP gateway/PBX (coming from the PSTN for example)

Here below a part of the picture Flux.png


3.    Setting up an inbound activity

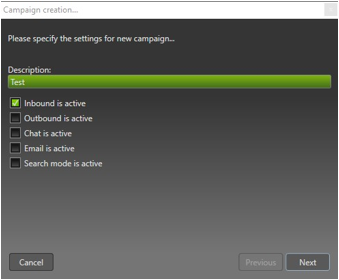

​Within the administration module, select the campaign button   and create a new campaign  Choose a description and check “Inbound is active”.

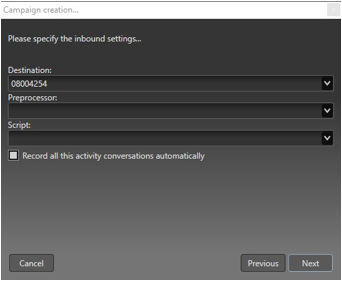

Select the “Destination” (this is the DID/number provided by the carrier)
Select a “Preprocessor” and a “script” if needed

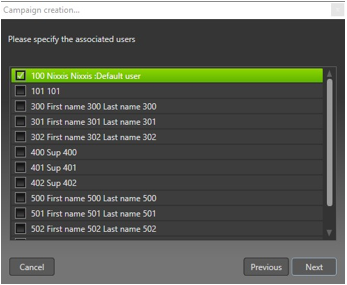

Select the agent(s) that will be linked to this activity (if needed)



Once done, the campaign can be converted to the “advanced mode” if needed.
