Contact Route Report Database Structure

Introduction

This article aims to describe the structure of Contact Route Report Database.

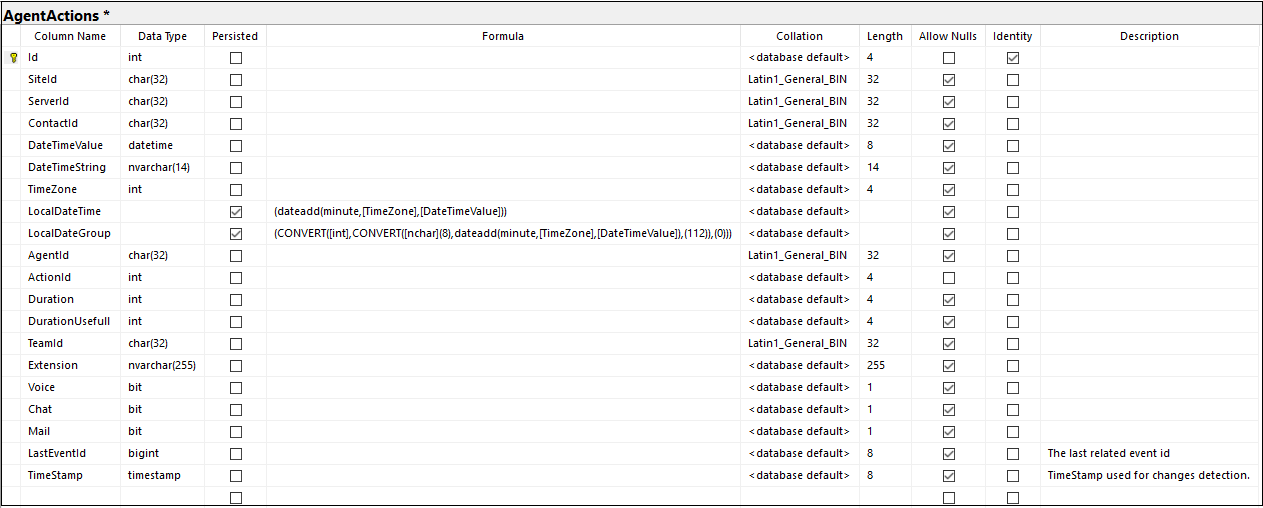

AgentActions

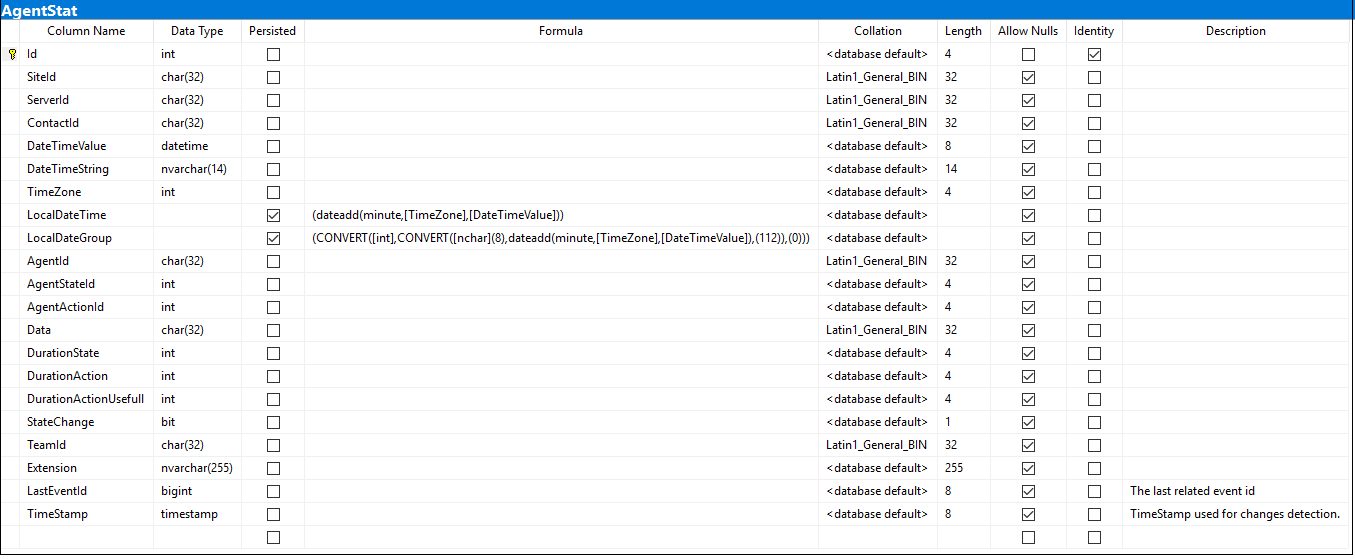

AgentStat

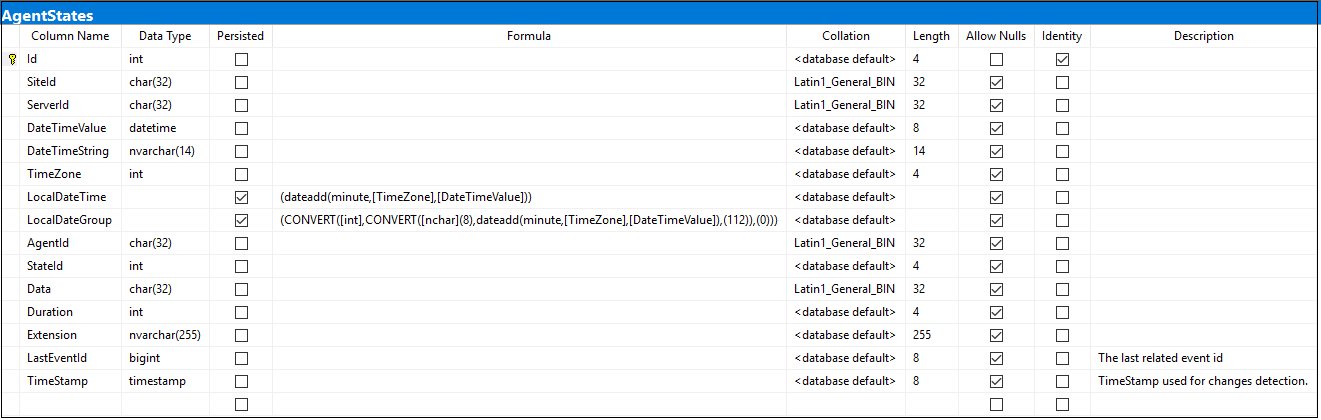

AgentStates

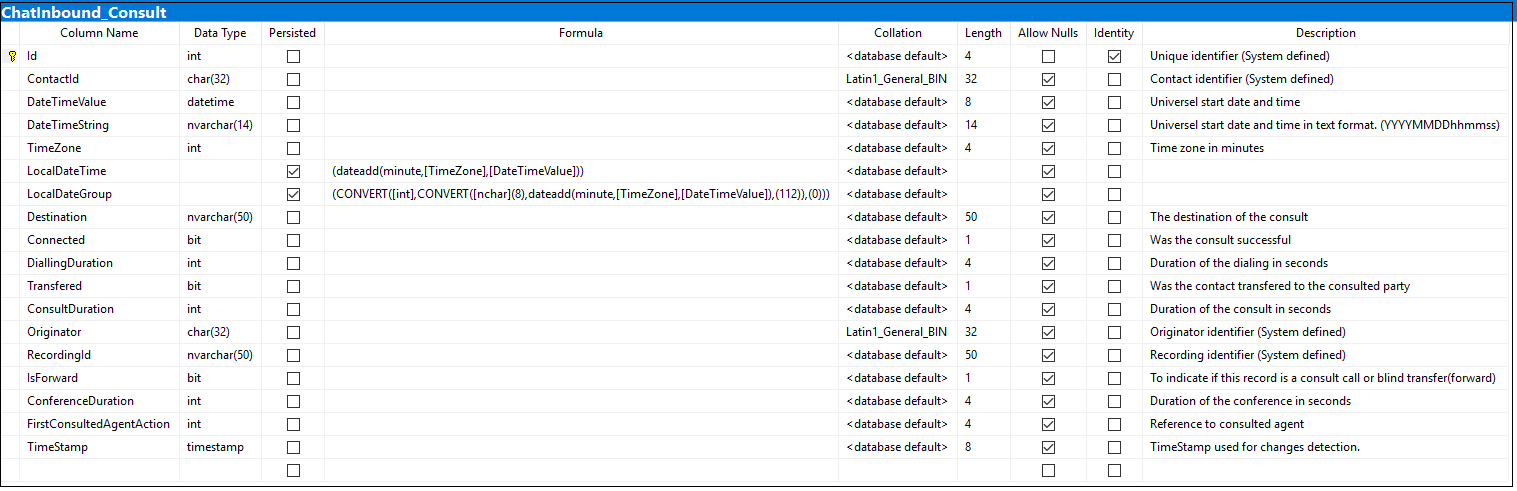

ChatInbound_Consult

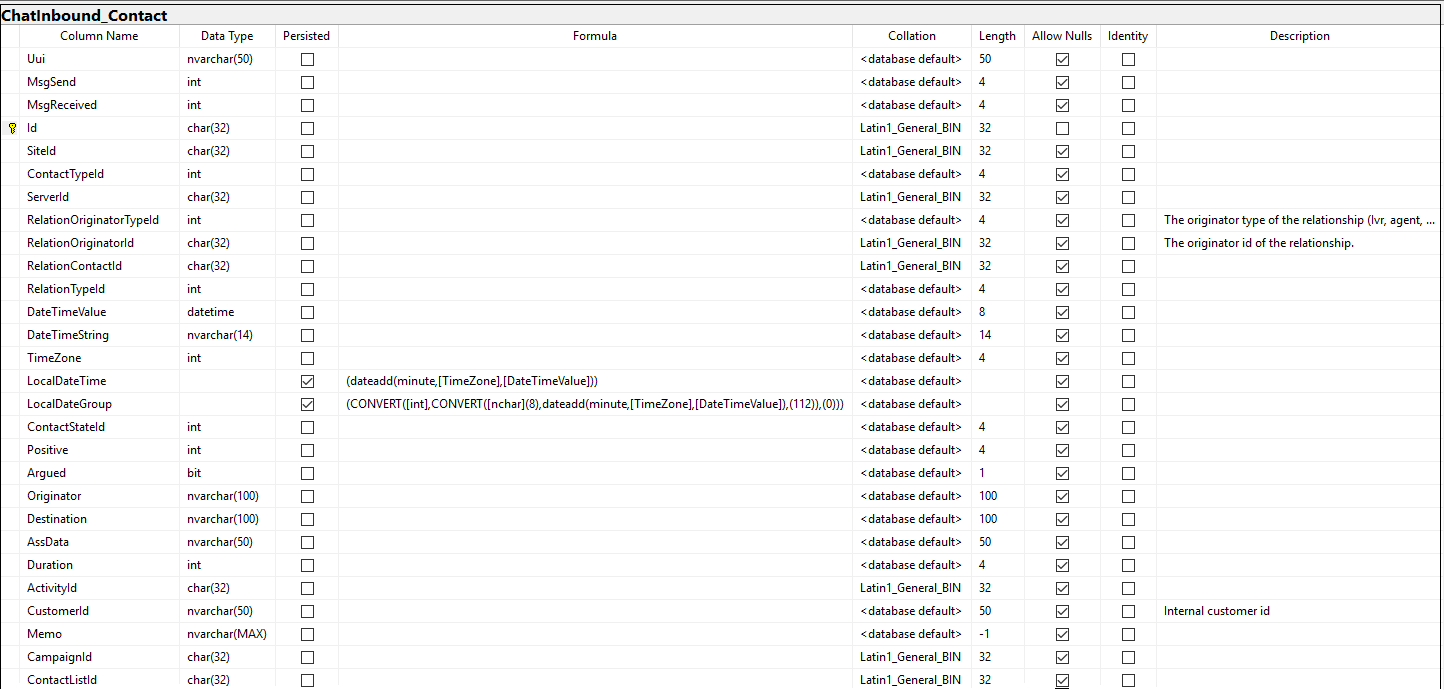

ChatInbound_Contact

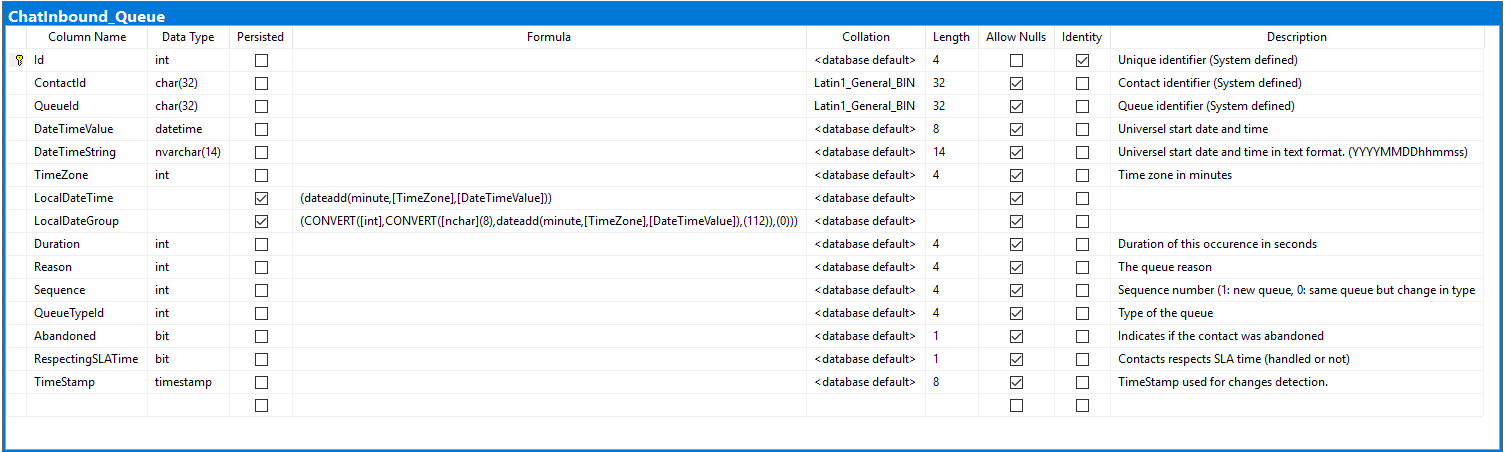

ChatInbound_Queue

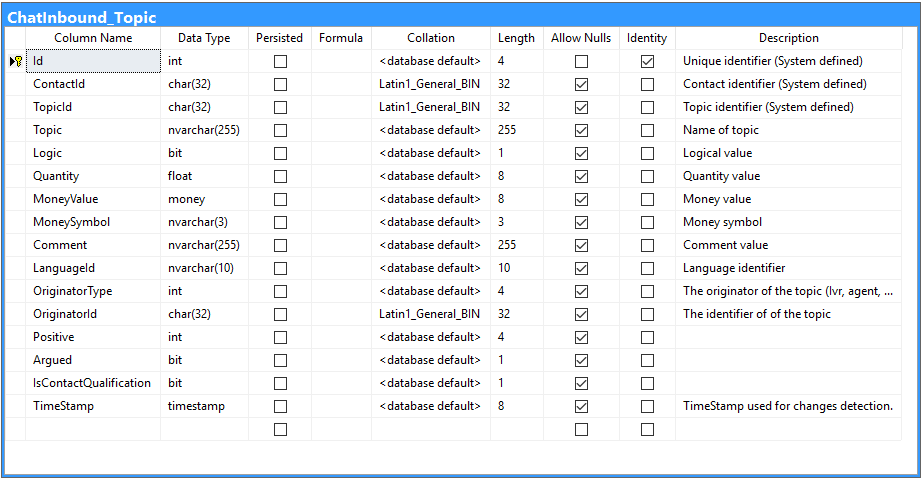

ChatInbound_Topic

ChatOutbound_Consult

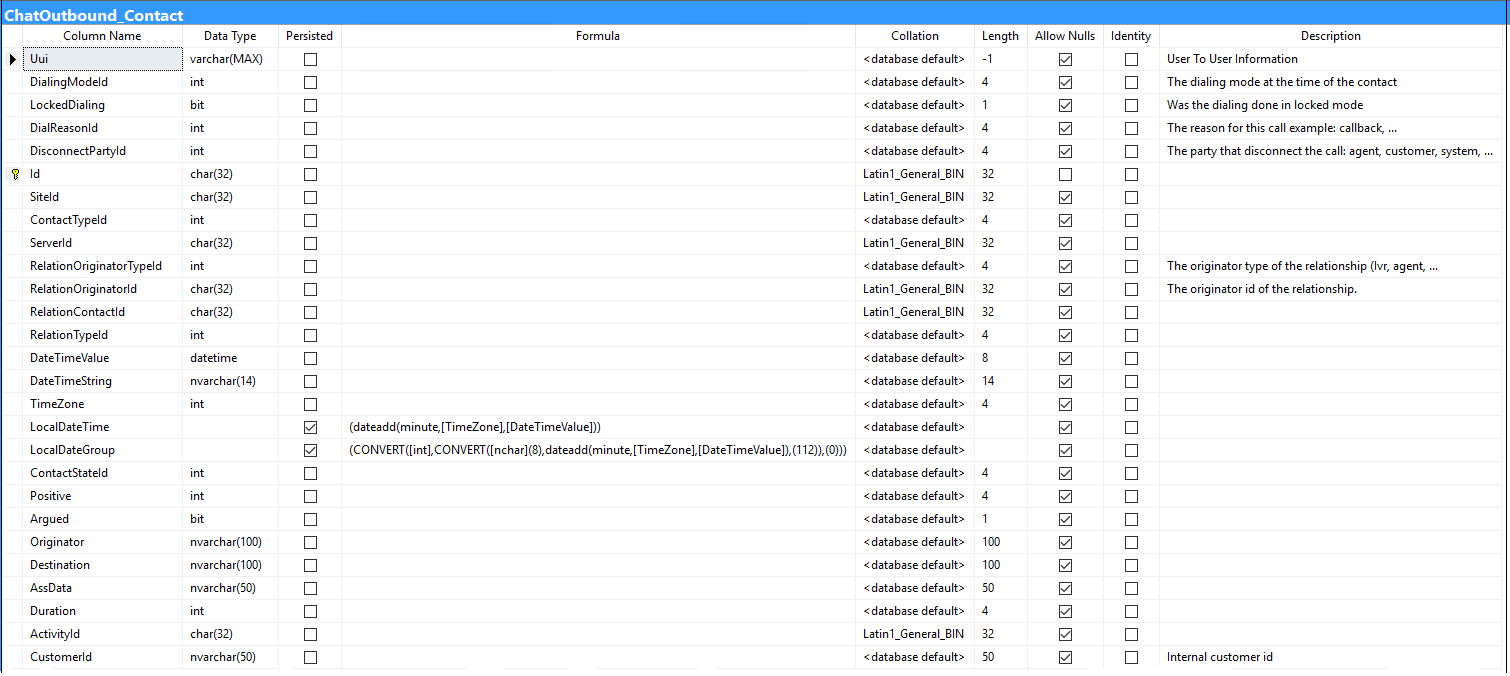

ChatOutbound_Contact

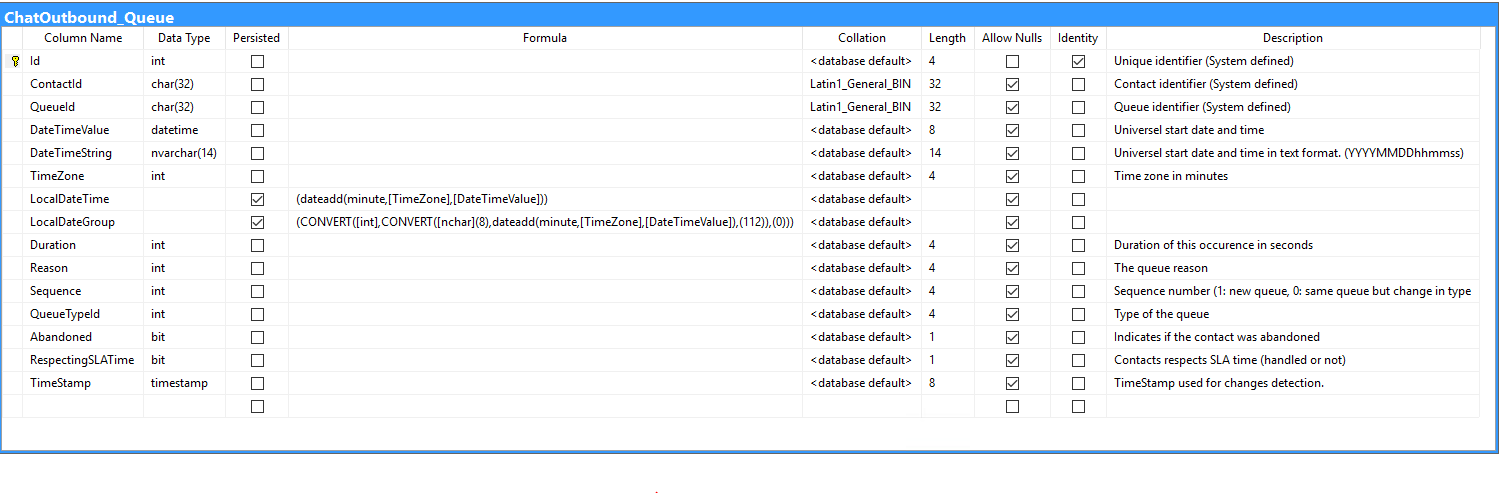

ChatOutbound_Queue

ChatOutbound_Topic

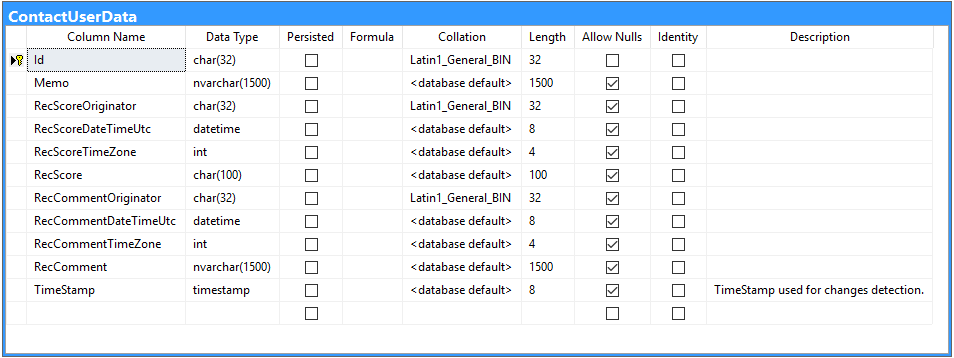

ContactUserData

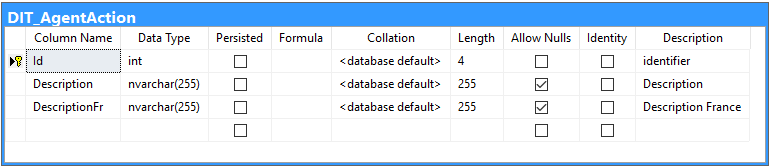

DIT_AgentAction

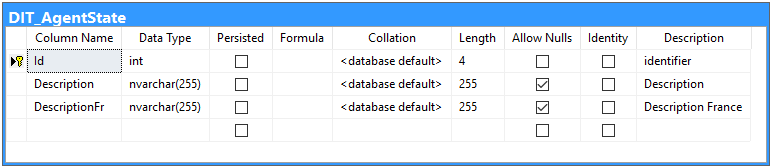

DIT_AgentState

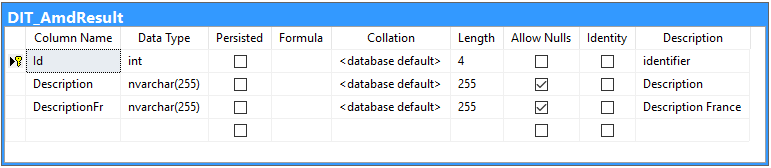

DIT_AmdResult

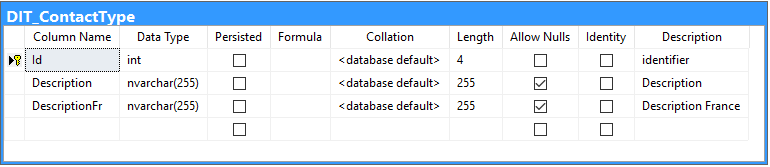

DIT_ContactType

DIT_DialingMode

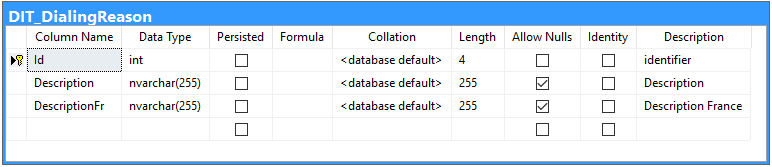

DIT_DialingReason

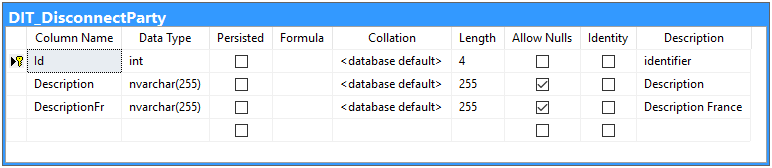

DIT_DisconnectParty

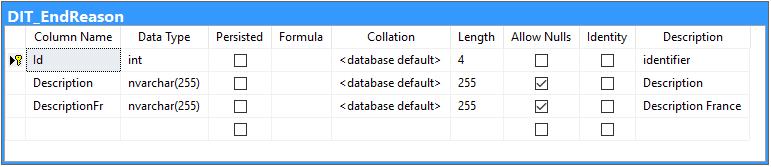

DIT_EndReason

DIT_In_ContactState

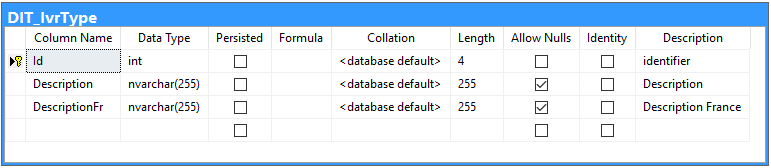

DIT_IvrType

DIT_OriginatorType

DIT_Out_ContactState

DIT_OverflowCondition

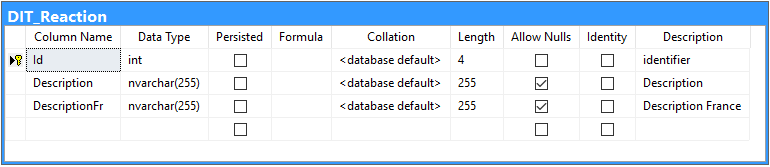

DIT_Reaction

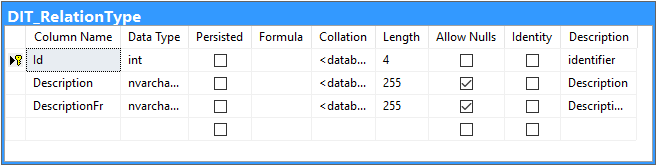

DIT_RelationType

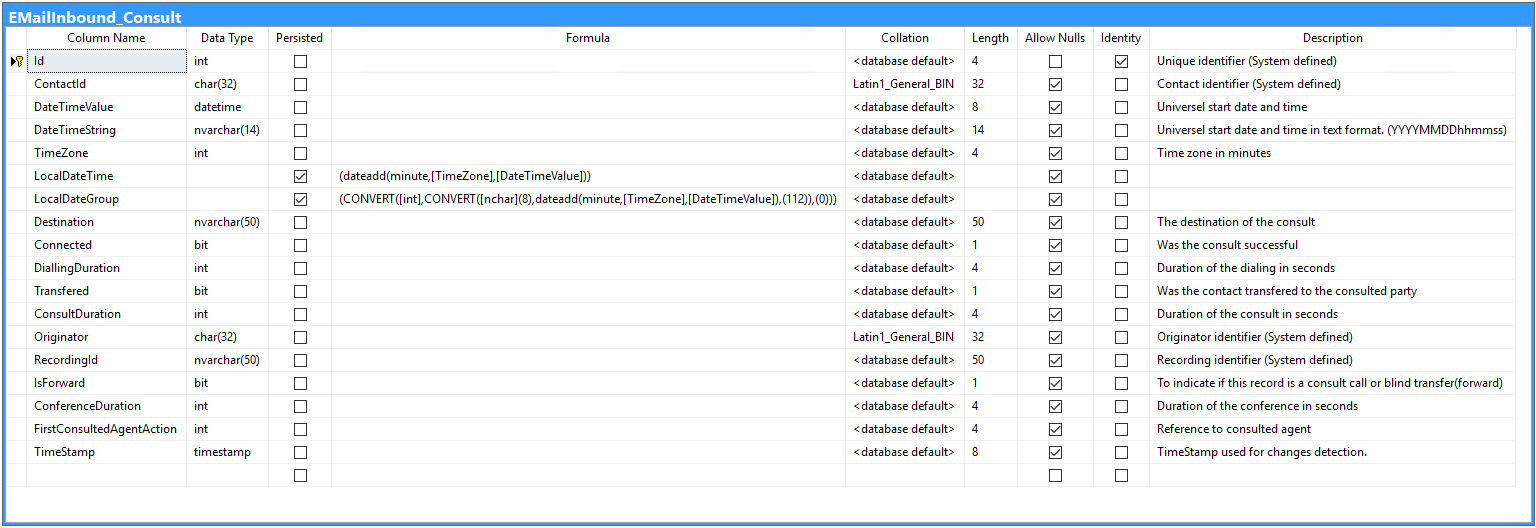

EmailInbound_Consult

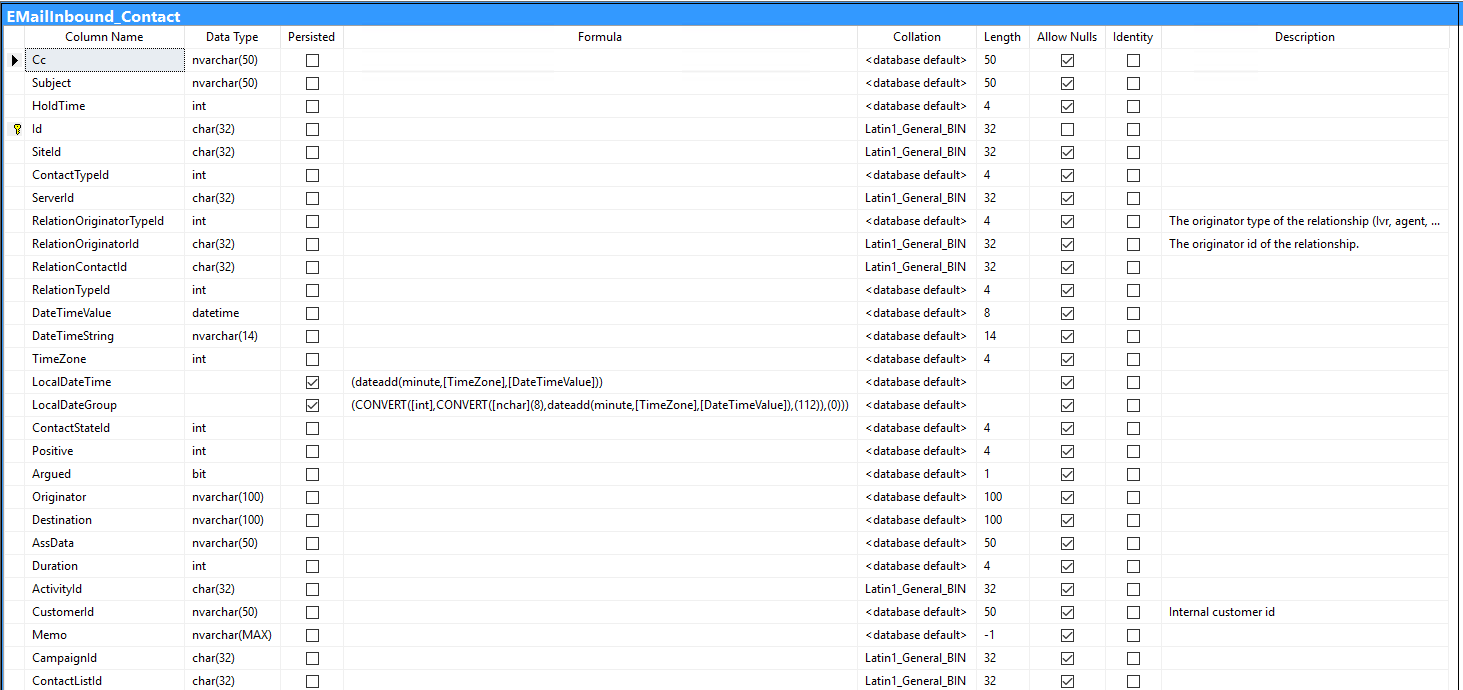

EmailInbound_Contact

EmailInbound_Queue

EmailInbound_Topic

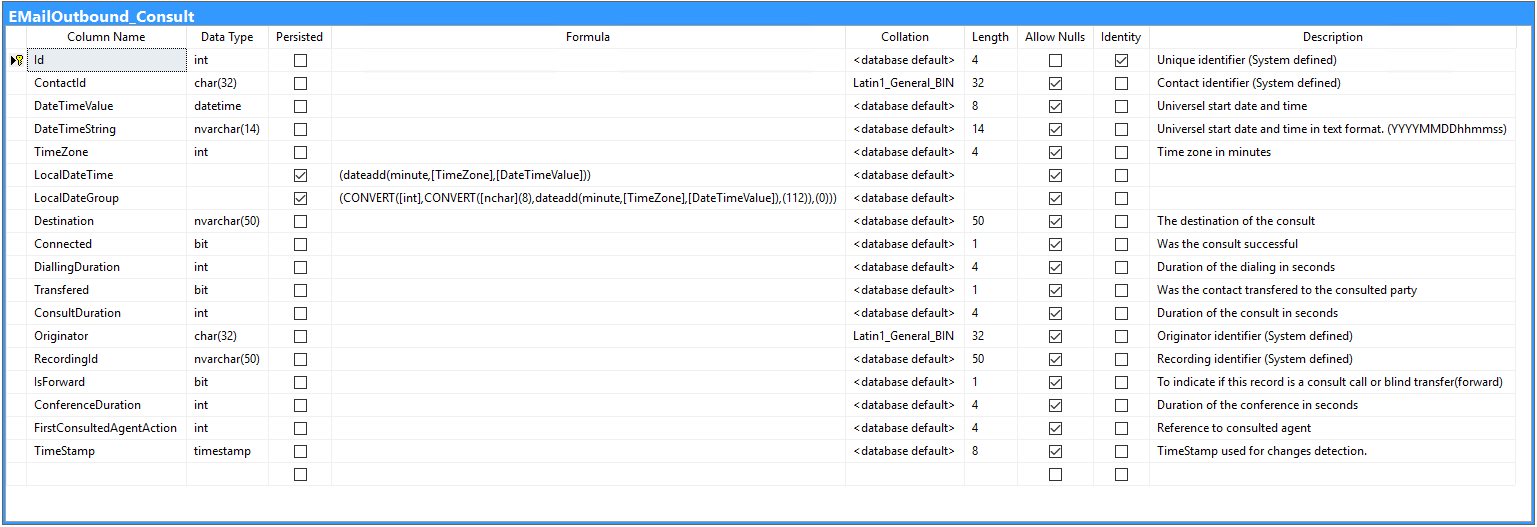

EmailOutbound_Consult

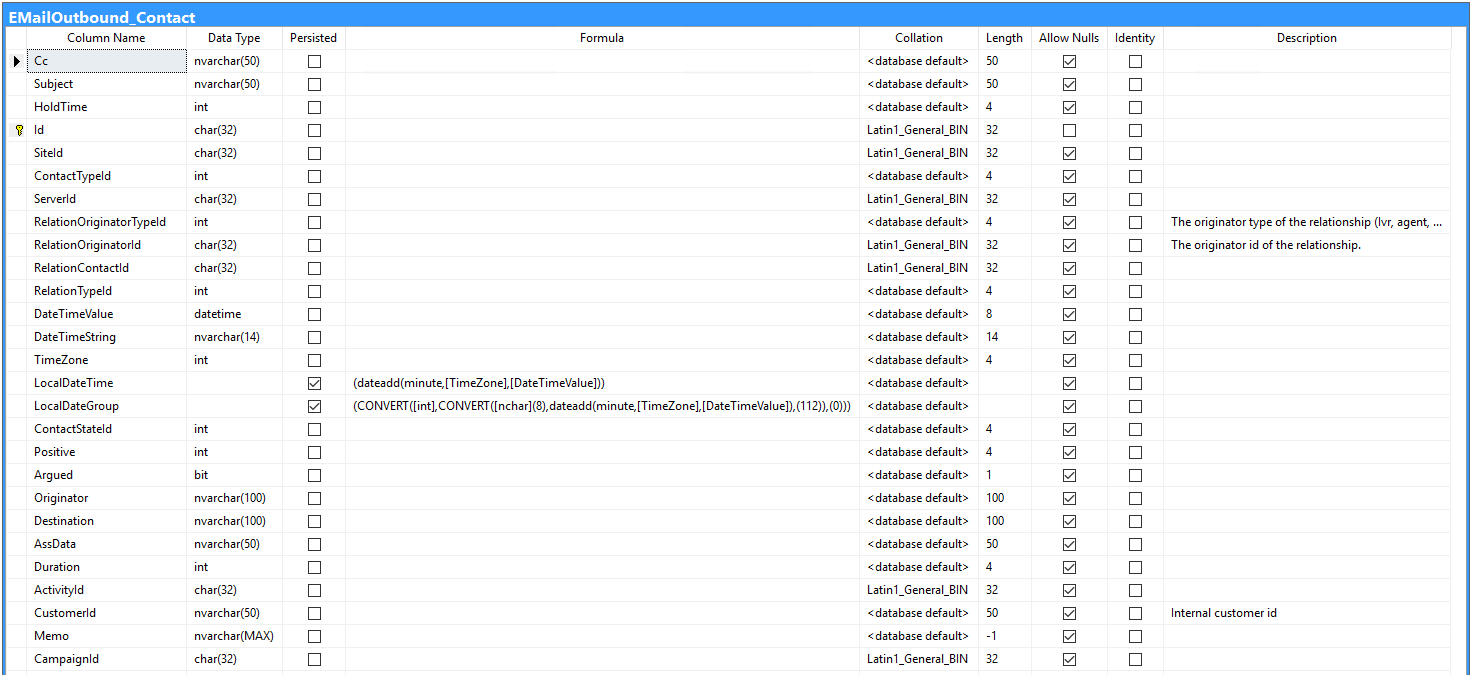

EmailOutbound_Contact

EmailOutbound_Queue

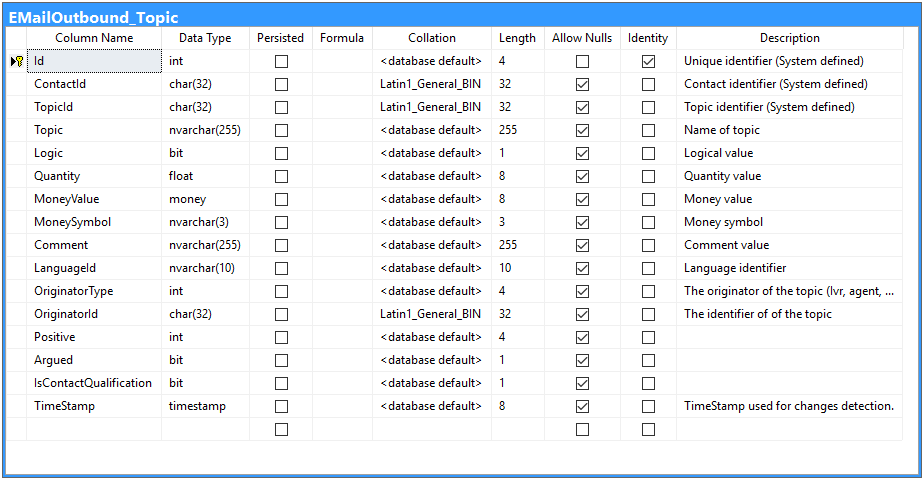

EmailOutbound_Topic

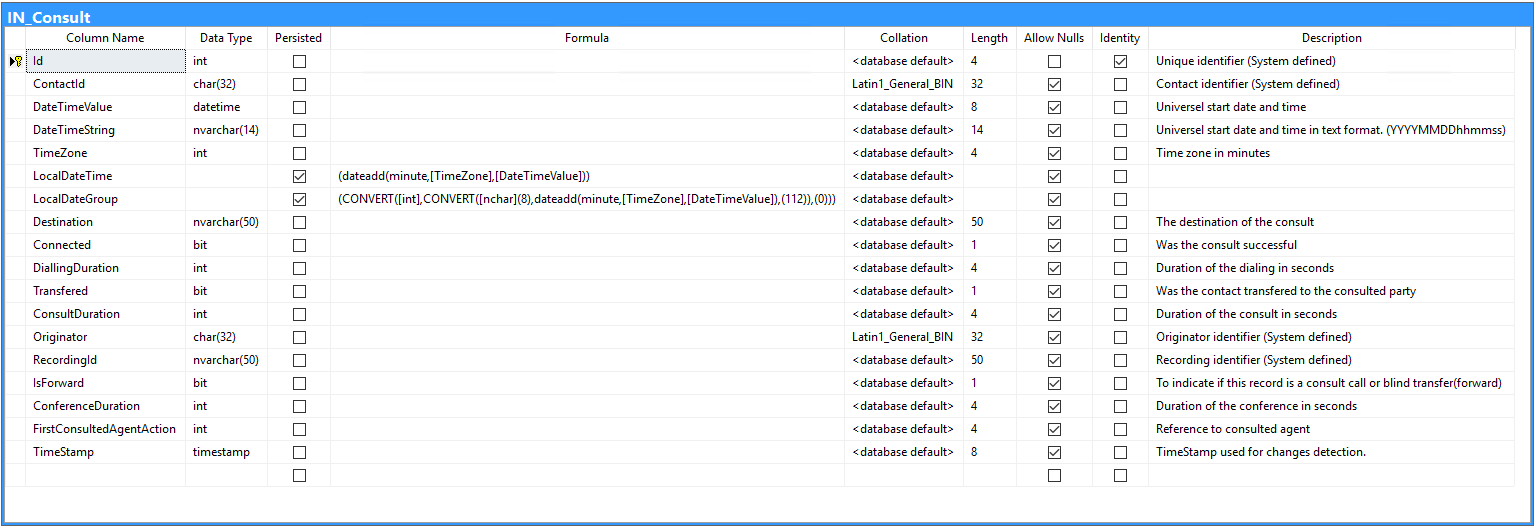

IN_Consult

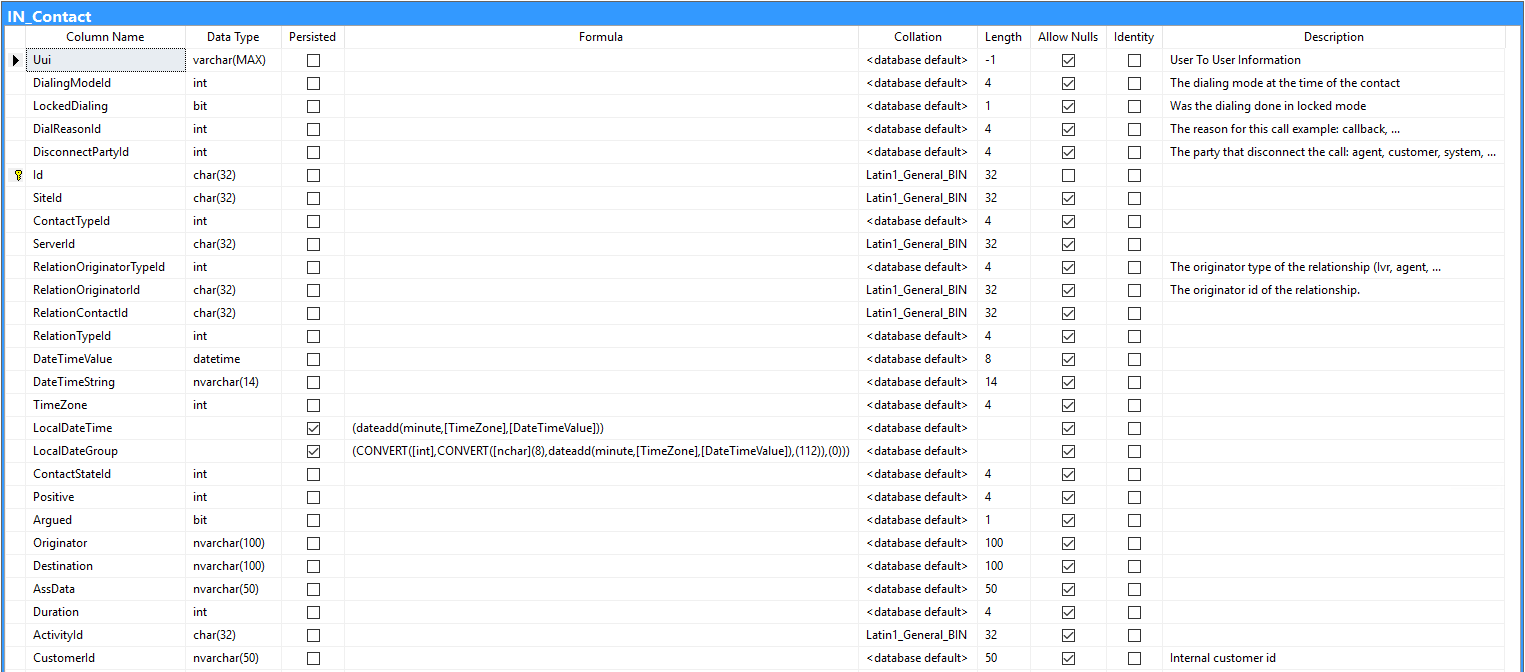

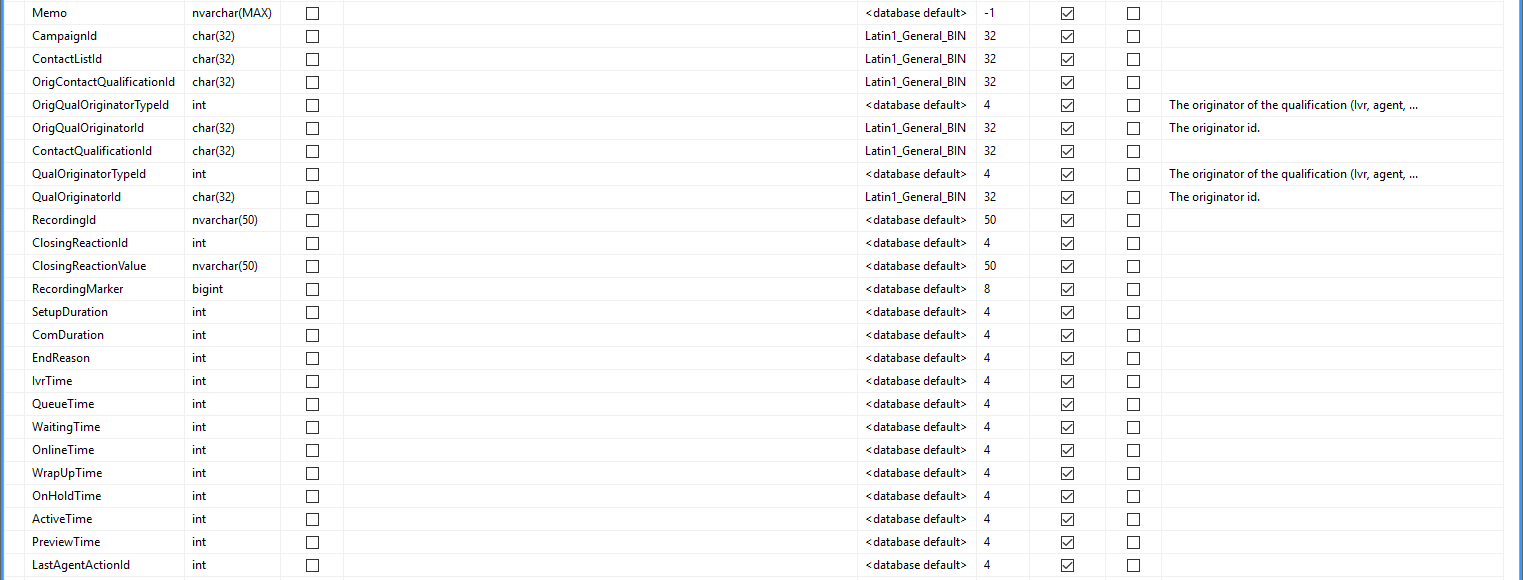

IN_Contact

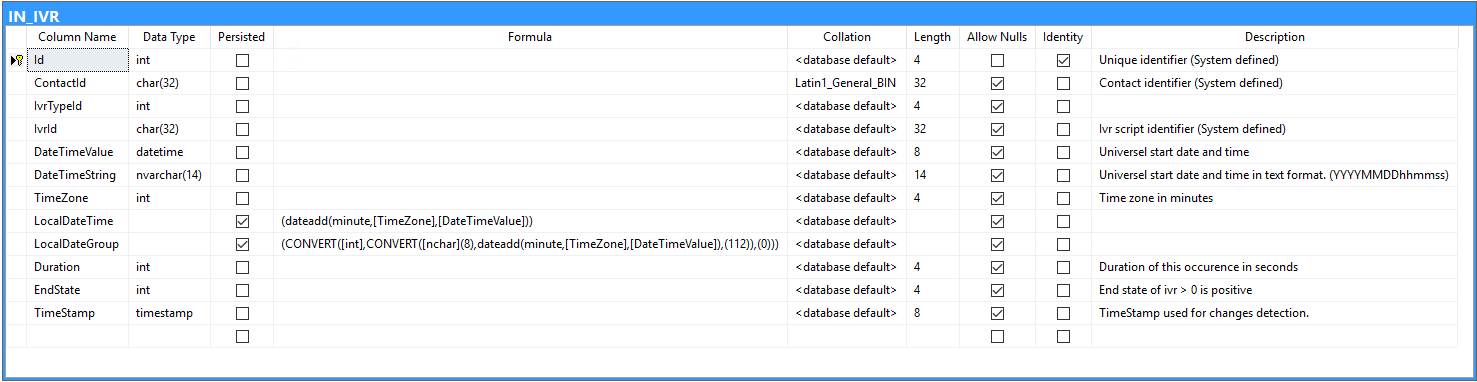

IN_IVR

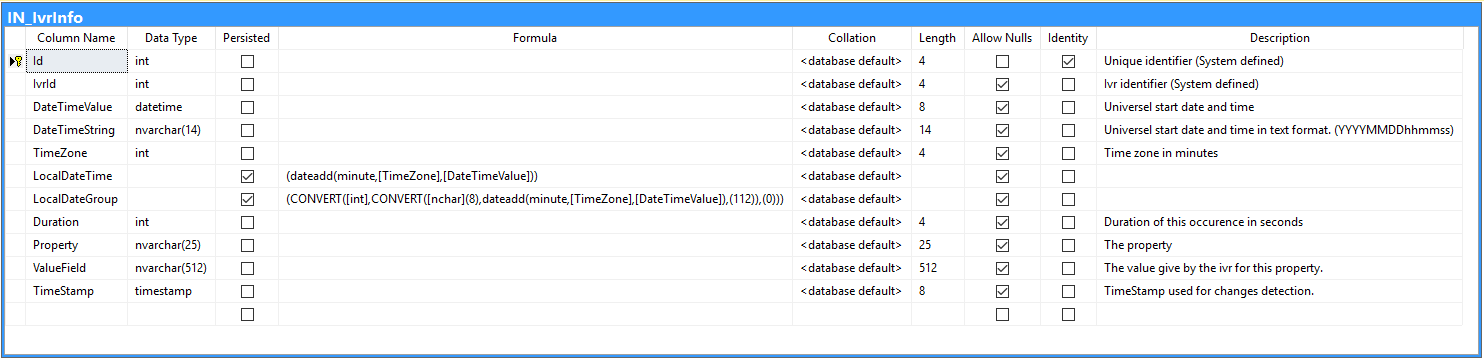

IN_IvrInfo

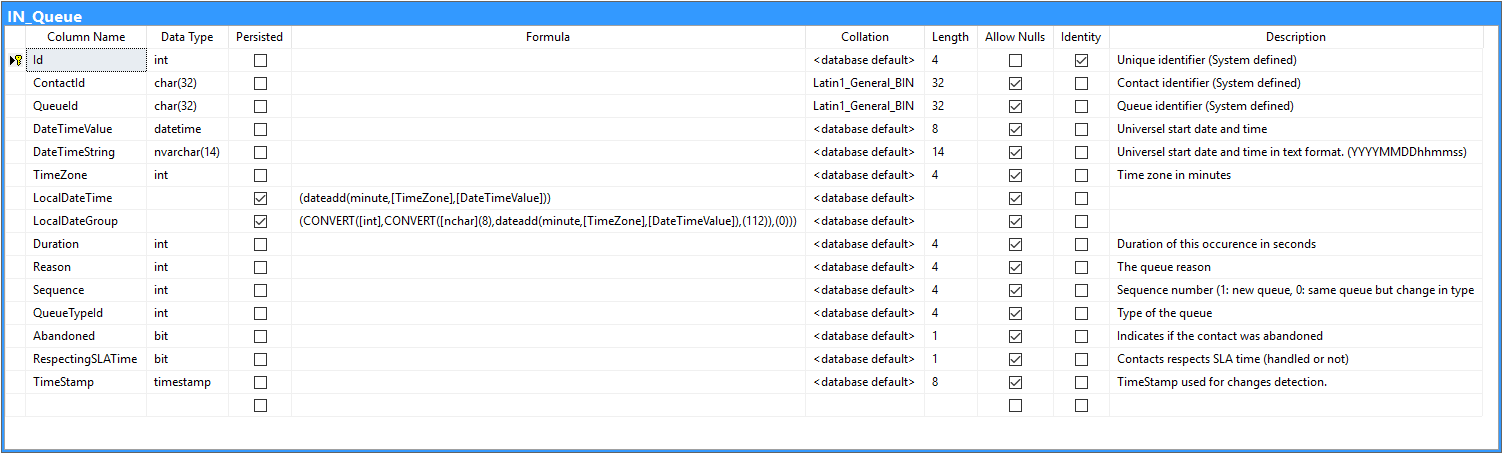

IN_Queue

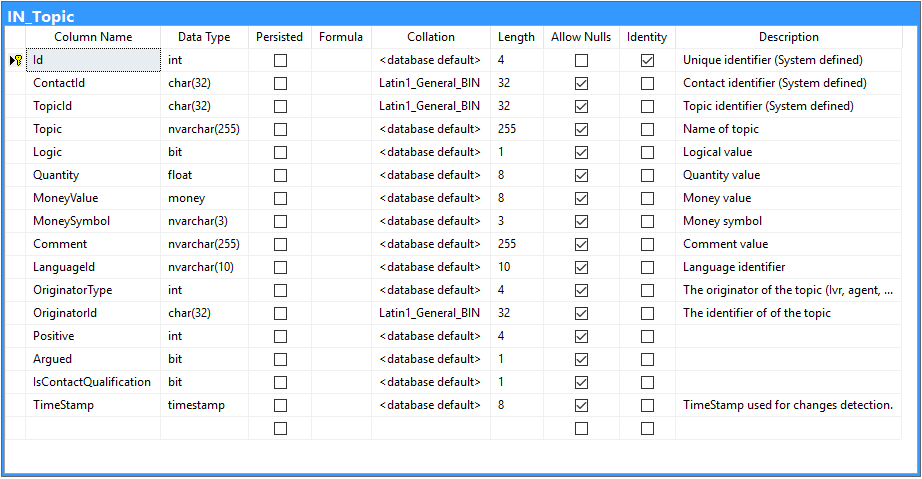

IN_Topic

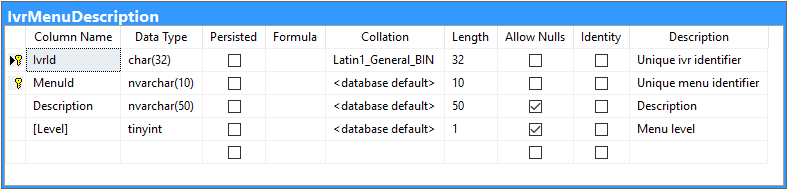

IvrMenuDescription

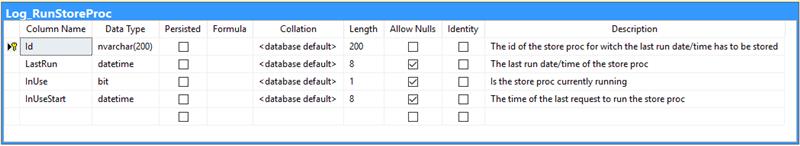

Log_RunStoreProc

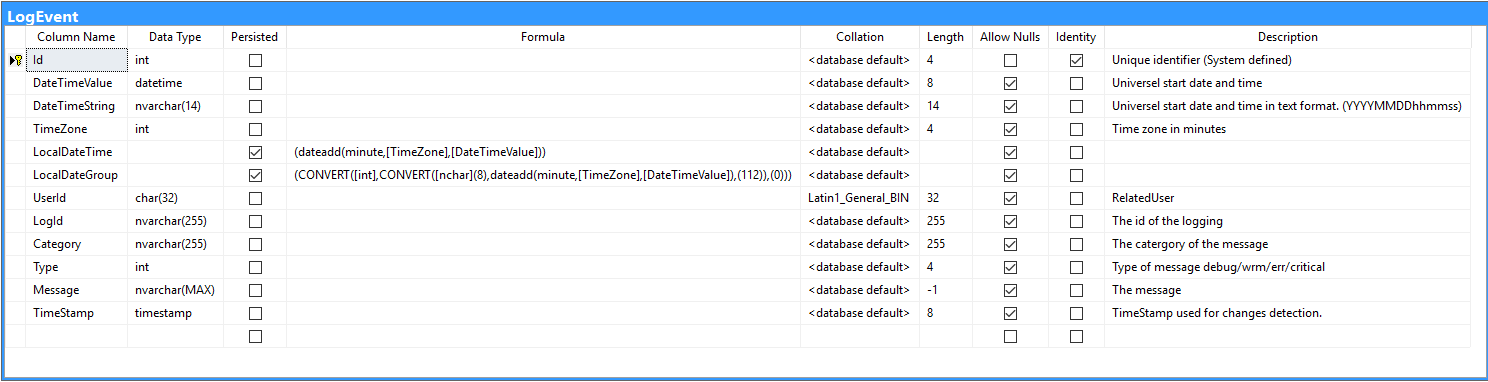

LogEvent

OUT_Consult

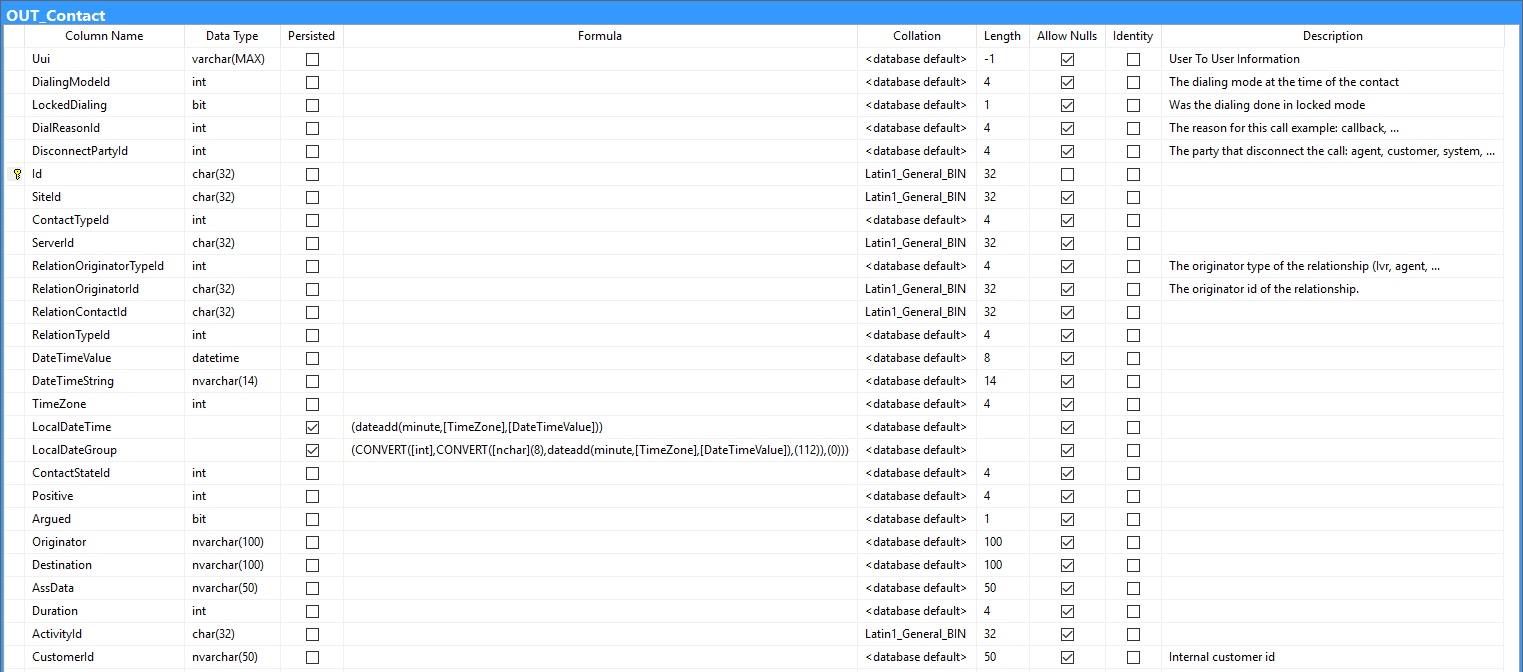

OUT_Contact

OUT_IVR

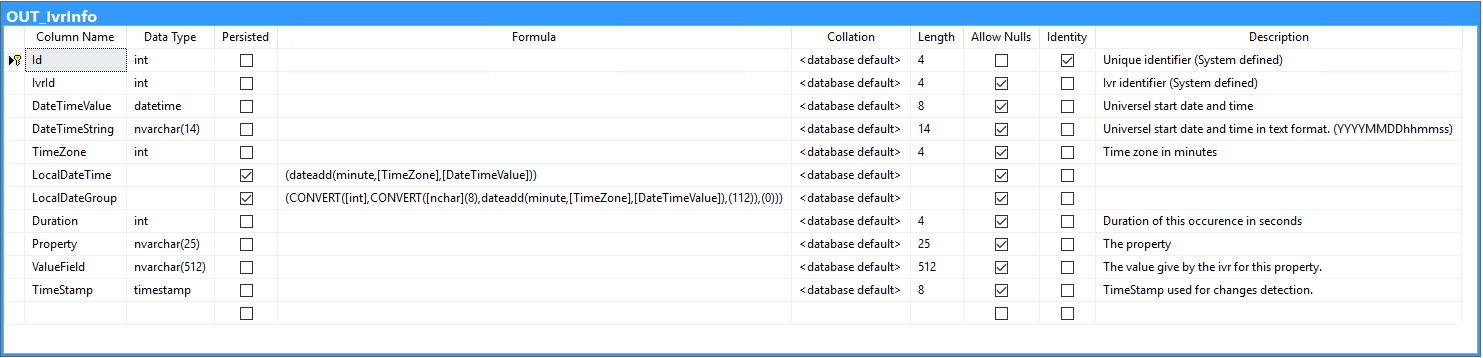

OUT_IvrInfo

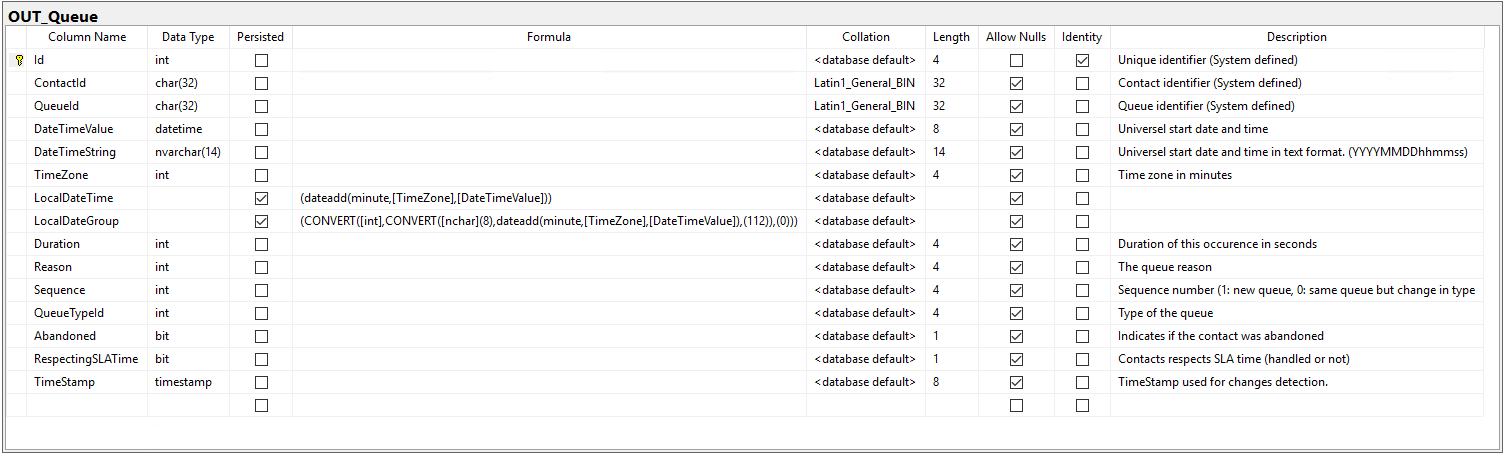

OUT_Queue

OUT_Topic

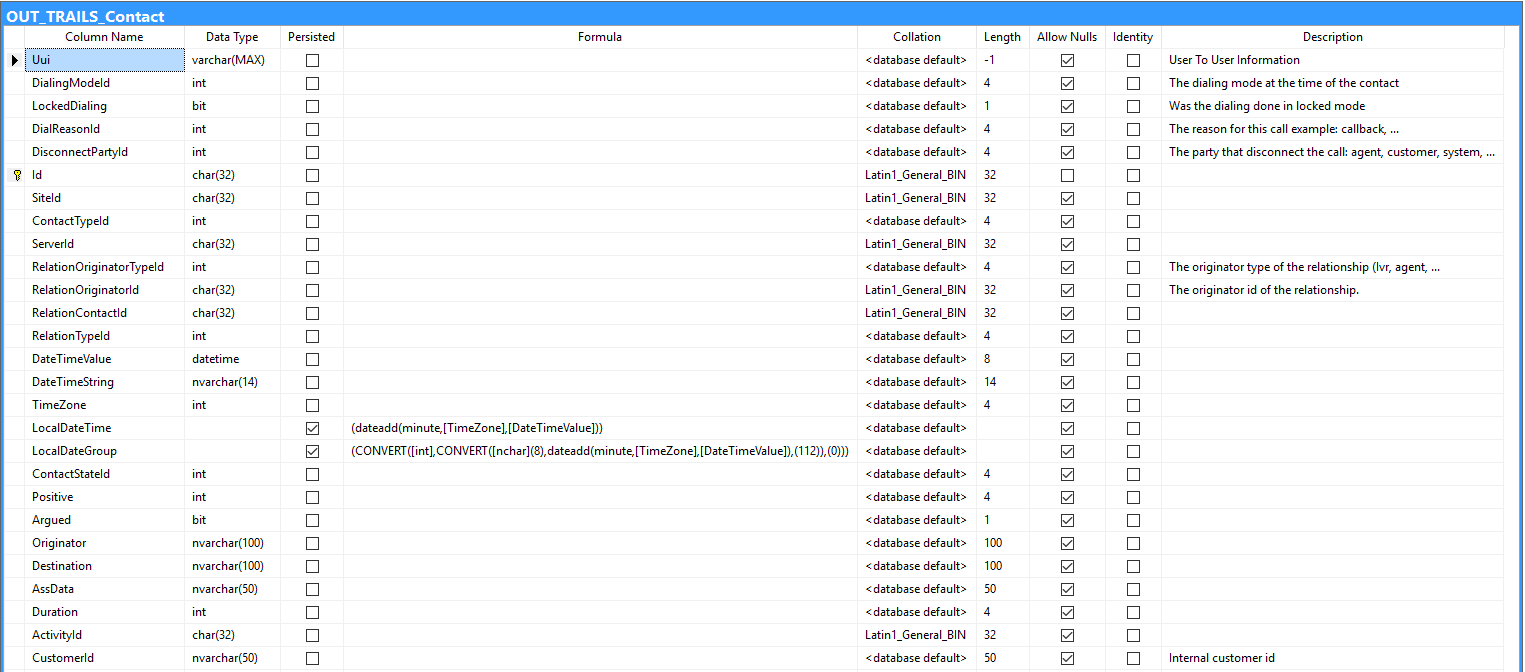

OUT_TRAILS_Contact

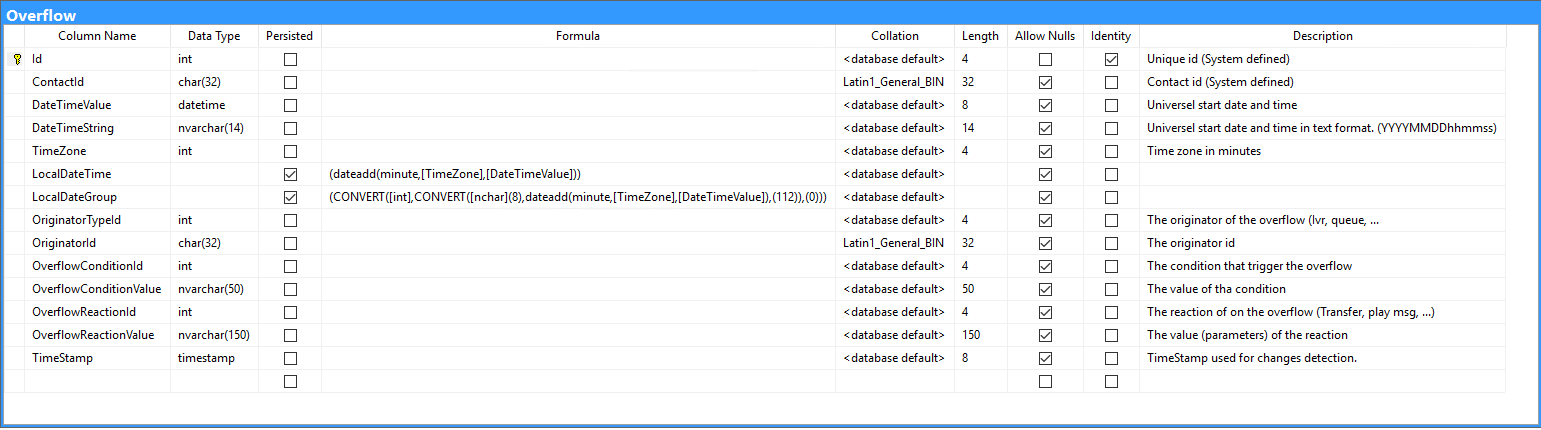

Overflow

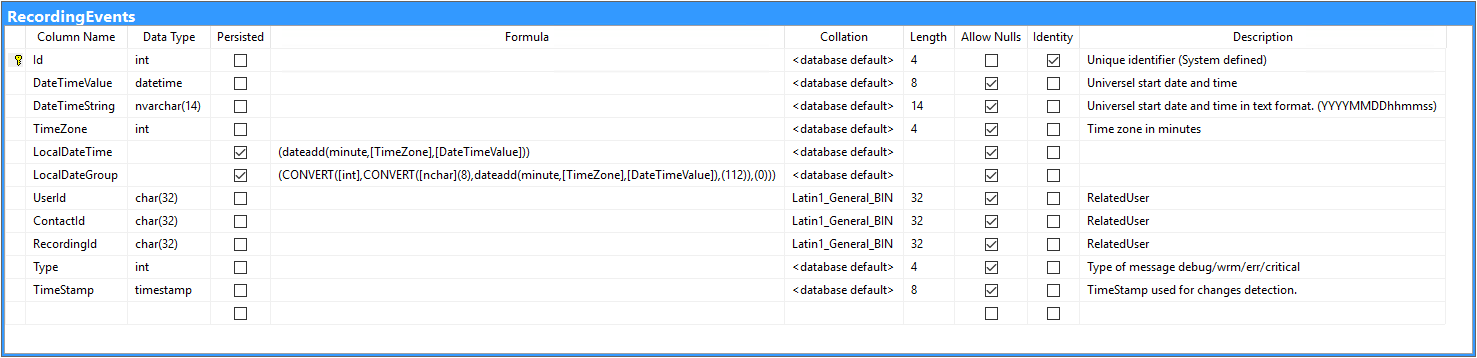

RecordingEvents

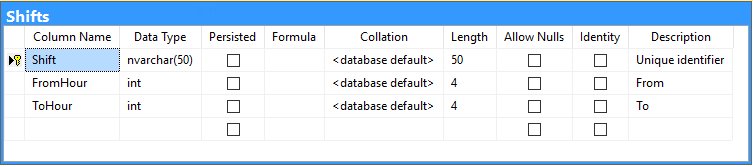

Shifts

SoftphoneStats

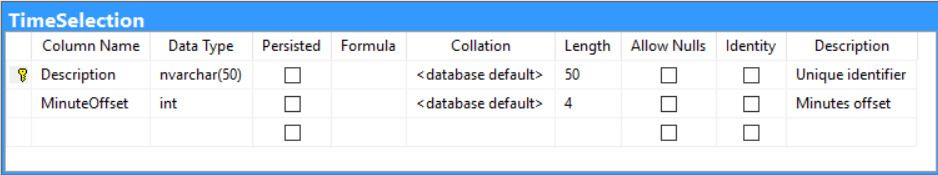

TimeSelection

Nom d'utilisateur : nixxisdb
Lien : https://ncsdatadictionary.nixxis.com

Pour toute question relative au mot de passe, veuillez contacter le support à l'adresse suivante : support@nixxis.com
